Timer
What is a Timer ?
A Timer is device it sense the
time interval and produce an output at a set value . example alarm Timer setting.(
Timer in Wikipedia )
,What is the need of a timer in Micro controller ?
1) Some time micro controller Code need some accurate
Delay ( Example blinking An LED in each accurate 1 sec.
Look LED Blinking example2)Some Time the code needs the code
Repeat 3) Most of the
Interfacing devices with micro-controller needs a clock (accurate interval of clocks)
Example: LCD module require Clock Signal
Look LCD Interfacing Timer in 8051
Also a Timer actually require a clock pulse (pling) .These pulse are given from controller (actually it is in software based not giving ) see below picture

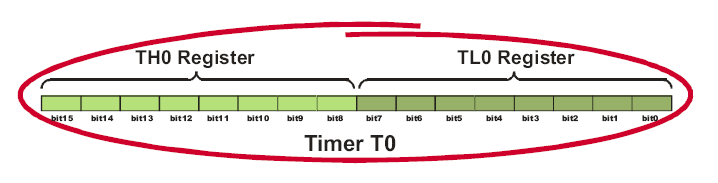

8051 type controller has two Timer Timer 0 and Timer 1 (These two timer is the length of 16 bit ,0000 to FFFF ).These Timer is named as TR0 and TR1.
The Timer Setting/configuring can controlling by the TMOD register
These TMOD register Values is used to decide how the Timer Works .
Sample program
Timer
What is a Timer ?
A Timer is device it sense the
time interval and produce an output at a set value . example alarm Timer setting.(
Timer in Wikipedia )
,What is the need of a timer in Micro controller ?
1) Some time micro controller Code need some accurate
Delay ( Example blinking An LED in each accurate 1 sec.
Look LED Blinking example
2)Some Time the code needs the code
Repeat
3) Most of the
Interfacing devices with micro-controller needs a clock (accurate interval of clocks)
Example: LCD module require Clock Signal
Look LCD Interfacing
Timer in 8051
Also a Timer actually require a clock pulse (pling) .These pulse are given from controller (actually it is in software based not giving ) see below picture
8051 type controller has two Timer Timer 0 and Timer 1 (These two timer is the length of 16 bit ,0000 to FFFF ).These Timer is named as TR0 and TR1.
The Timer Setting/configuring can controlling by the TMOD register
These TMOD register Values is used to decide how the Timer Works .
Sample program
Switch Bounce
Microcontrolers may not in Human thinking frequency .Human thinking frequency is lies in some of low Hz . Microcontroler works variety range of frequency ie ,12Mhz,20 Mhz etc . In a push Button micro controller interfacing, Human and Micro controller are feels that whether the push is pressed or not in different way as follows in the graph .
Some small duration pulse due to denounce generated as multiple touch error
Hardware solution It can be made by a resistor and a capacitor in the following manner or any other for comfortable
When ever the switch is pressed the capacitor will charge rapidly ,practically the first charge wil be across the ,capacitor ,
So we can avoid the denouncing effect .
The capacitor and the resistor will be select in accordance with time constant . as follows
Will be update
Switch Bounce
Microcontrolers may not in Human thinking frequency .Human thinking frequency is lies in some of low Hz . Microcontroler works variety range of frequency ie ,12Mhz,20 Mhz etc . In a push Button micro controller interfacing, Human and Micro controller are feels that whether the push is pressed or not in different way as follows in the graph .
Some small duration pulse due to denounce generated as multiple touch error
Hardware solution
It can be made by a resistor and a capacitor in the following manner or any other for comfortable
When ever the switch is pressed the capacitor will charge rapidly ,practically the first charge wil be across the ,capacitor ,
So we can avoid the denouncing effect .
The capacitor and the resistor will be select in accordance with time constant . as follows
Will be update
